镜头对焦测试卡

镜头对焦测试卡简介

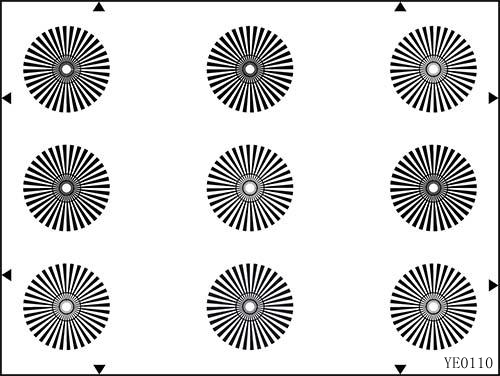

镜头对焦测试卡YE0110用于测试镜头的整体对焦，调整镜头，检查镜头各区后焦及分辨率。测试卡由9个扇形星组成，在图像各个区域均匀分布。扇形星的中间白色部分是外径的10%。在扇形星内有两个圆形线条，内层图形是一个625线的结构，较大圆线是312线结构。

The test chart consists of 9 sector stars, distributed equally over the picture area. The unresolved center of the sector star is 10% of its outer diameter. Within the sector stars are two circular lines. The inner one marks a 625 line structure, the larger circular line marks a structure of 312 lines.


The test chart is designed for

• adjustment of camera lenses

• checking back focal distance

• checking resolution over the picture area
